Globe Valves with flanges
Fig.IN 203
PN10 straight globe valve, bronze Rg5 body and screwed secured bonnet, SL type disc, SoMs59 spindle, flanged PN10, Fig.IN 203.
Fig.IN 204
PN10 angle globe valve, bronze Rg5 body and screwed secured bonnet, SL type disc, SoMs59 spindle, flanged PN10, Fig.IN 204.
Fig.IN 252
PN16 straight globe valve, bronze Rg5 body and screwed bonnet, SL type disc with PTFE insert, flanged PN16,
Fig.IN 252.
Fig.IN 253
PN16 angle globe valve, bronze Rg5 body and screwed bonnet, SL type disc with PTFE insert, flanged PN16,
Fig.IN 253.
Fig.IN 254
PN10 straight globe valve, bronze Rg5 body and bolted bonnet, SL type disc, SoMs59 spindle, integral seats, short pattern, flanged PN10, Fig.IN 254.
Fig.IN 254DIN
PN10 straight globe valve, bronze Rg5 body and bolted bonnet, SL type disc, SoMs59 spindle, integral seats,
DIN pattern, flanged PN10, Fig.IN 254DIN.
Fig.IN 256
PN10 angle globe valve, bronze Rg5 body and bolted bonnet, SL type disc, SoMs59 spindle, integral seats, short pattern, flanged PN10, Fig.IN 256.
Fig.IN 256DIN
PN10 angle globe valve, bronze Rg5 body and bolted bonnet, SL type disc, SoMs59 spindle, integral seats,
DIN pattern, flanged PN10, Fig.IN 256DIN.
Fig.IN 260
PN10 straight globe valve, cast steel GS-C25 body and bolted bonnet, SL type disc, AISI 304 seats, flanged PN10,
Fig.IN 260.
Fig.IN 261
PN10 angle globe valve, cast steel GS-C25 body and bolted bonnet, SL type disc, AISI 304 seats, flanged PN10,
Fig.IN 261.
Fig.IN 264
PN10 straight globe valve, cast steel GS-C25 body and bolted bonnet, SL type disc, bronze Rg5 seats, flanged PN10,
Fig.IN 264.
Fig.IN 265
PN10 angle globe valve, cast steel GS-C25 body and bolted bonnet, SL type disc, bronze Rg5 seats, flanged PN10,
Fig.IN 265.
Fig.IN 304
PN10 straight globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SL type disc, bronze Rg5 seats, flanged PN10, Fig.IN 304.
Fig.IN 304RK
PN10 straight globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SL type regulating disc, bronze Rg5 seats, flanged PN10, Fig.IN 304RK.
Fig.IN 305
PN10 angle globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SL type disc, bronze Rg5 seats, flanged PN10, Fig.IN 305.
Fig.IN 306
PN10 straight globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SL type disc, AISI 304 seats, flanged PN10, Fig.IN 306.
Fig.IN 307
PN10 angle globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SL type disc, AISI 304 seats, flanged PN10, Fig.IN 307.
Fig.IN 308
PN10 straight globe valve, cast iron GG-25 body and bolted bonnet, SL type disc, AISI 304 seats, flanged PN10,
Fig.IN 308.
Fig.IN 309
PN10 angle globe valve, cast iron GG-25 body and bolted bonnet, SL type disc, AISI 304 seats, flanged PN10,
Fig.IN 309.
Fig.IN 314
PN10 straight globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SDNR type disc with spring, bronze Rg5 seats, flanged PN10, Fig.IN 314.
Fig.IN 315
PN10 angle globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SDNR type disc with spring, bronze Rg5 seats, flanged PN10, Fig.IN 315.
Fig.IN 320
PN10 straight overboard globe valve, bronze Rg5 body and bolted bonnet, spring loaded, integral seats, 0,1-0,5 bar, flanged PN10, Fig.IN 320.
Fig.IN 320LK
PN10 straight overboard globe valve, bronze Rg5 body and bolted bonnet, spring loaded, integral seats, SDNR type disc, 0,1-0,5 bar, flanged PN10, Fig.IN 320LK.
Fig.IN 321
PN10 angle overboard globe valve, bronze Rg5 body and bolted bonnet, spring loaded, integral seats, 0,1-0,5 bar, flanged PN10, Fig.IN 321.
Fig.IN 321LK
PN10 angle overboard globe valve, bronze Rg5 body and bolted bonnet, spring loaded, integral seats, SDNR type disc, 0,1-0,5 bar, flanged PN10, Fig.IN 321LK.
Fig.IN 322
PN10 straight overboard globe valve, cast iron GG-25 body and bolted bonnet, spring loaded, bronze Rg5 seats, 0,1-0,5 bar, flanged PN10, Fig.IN 322.
Fig.IN 322LK
PN10 straight overboard globe valve, cast iron GG-25 body and bolted bonnet, spring loaded, bronze Rg5 seats, SDNR type disc, 0,1-0,5 bar, flanged PN10, Fig.IN 322LK.
Fig.IN 323
PN10 angle overboard globe valve, cast iron GG-25 body and bolted bonnet, spring loaded, bronze Rg5 seats, 0,1-0,5 bar, flanged PN10, Fig.IN 323.
Fig.IN 323LK
PN10 angle overboard globe valve, cast iron GG-25 body and bolted bonnet, spring loaded, bronze Rg5 seats, SDNR type disc, 0,1-0,5 bar, flanged PN10, Fig.IN 323LK.
Fig.IN 324
PN10 straight overboard globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, spring loaded, bronze Rg5 seats, 0,1-0,5 bar, flanged PN10, Fig.IN 324.
Fig.IN 324LK
PN10 straight overboard globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, spring loaded, bronze Rg5 seats, SDNR type disc, 0,1-0,5 bar, flanged PN10,
Fig.IN 324LK.
Fig.IN 325
PN10 angle overboard globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, spring loaded, bronze Rg5 seats, 0,1-0,5 bar, flanged PN10, Fig.IN 325.
Fig.IN 325LK
PN10 right angle nodular cast iron spring loaded overboard valve, GGG-40.3 body and cover, bronze seal, loose valve, 0.1-0.5 bar, flanges according to DIN PN10, Fig.IN 325LK.
Fig.IN 350
PN10 straight self-closing globe valve, cast iron GG-25 body and bolted bonnet, weight loaded, AISI 304 seats, flanged PN10, Fig.IN 350.
Fig.IN 351
PN10 angle self-closing globe valve, cast iron GG-25 body and bolted bonnet, weight loaded, AISI 304 seats, flanged PN10, Fig.IN 351.
Fig.IN 352
PN10 straight self-closing globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, weight loaded, AISI 304 seats, flanged PN10, Fig.IN 352.
Fig.IN 353
PN10 angle self-closing globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, weight loaded, AISI 304 seats, flanged PN10, Fig.IN 353.
Fig.IN 1203
PN10 straight globe valve, bronze Rg5 body and screwed secured bonnet, SDNR type disc, SoMs59 spindle, flanged PN10, Fig.IN 1203.
Fig.IN 1204
PN10 angle globe valve, bronze Rg5 body and screwed secured bonnet, SDNR type disc, SoMs59 spindle, flanged PN10, Fig.IN 1204.
Fig.IN 1252
PN16 straight globe valve, bronze Rg5 body and screwed bonnet, SDNR type disc with PTFE insert, flanged PN16, Fig.IN 1252.
Fig.IN 1253
PN16 angle globe valve, bronze Rg5 body and screwed bonnet, SDNR type disc with PTFE insert, flanged PN16, Fig.IN 1253.
Fig.IN 1254
PN10 straight globe valve, bronze Rg5 body and bolted bonnet, SDNR type disc, SoMs59 spindle, integral seats, short pattern, flanged PN10, Fig.IN 1254.
Fig.IN 1254DIN
PN10 straight globe valve, bronze Rg5 body and bolted bonnet, SDNR type disc, SoMs59 spindle, integral seats,
DIN pattern, flanged PN10, Fig.IN 1254DIN.
Fig.IN 1256
PN10 angle globe valve, bronze Rg5 body and bolted bonnet, SDNR type disc, SoMs59 spindle, integral seats, short pattern, flanged PN10, Fig.IN 1256.
Fig.IN 1256DIN
PN10 angle globe valve, bronze Rg5 body and bolted bonnet, SDNR type disc, SoMs59 spindle, integral seats,
DIN pattern, flanged PN10, Fig.IN 1256DIN.
Fig.IN 1260
PN10 straight globe valve, cast steel GS-C25 body and bolted bonnet, SDNR type disc with spring, AISI 304 seats, flanged PN10, Fig.IN 1260.
Fig.IN 1261
PN10 angle globe valve, cast steel GS-C25 body and bolted bonnet, SDNR type disc with spring, AISI 304 seats, flanged PN10, Fig.IN 1261.
Fig.IN 1264
PN10 straight globe valve, cast steel GS-C25 body and bolted bonnet, SDNR type disc with spring, bronze Rg5 seats, flanged PN10, Fig.IN 1264.
Fig.IN 1265
PN10 angle globe valve, cast steel GS-C25 body and bolted bonnet, SDNR type disc with spring, bronze Rg5 seats, flanged PN10, Fig.IN 1265.
Fig.IN 1306
PN10 straight globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SDNR type disc, AISI 304 seats, flanged PN10, Fig.IN 1306.
Fig.IN 1307
PN10 angle globe valve, nodular cast iron GGG-40.3 body and bolted bonnet, SDNR type disc with spring, AISI 304 seats, flanged PN10, Fig.IN 1307.
Fig.IN 1308
PN10 straight globe valve, cast iron GG-25 body and bolted bonnet, SDNR type disc with spring, AISI 304 seats, flanged PN10, Fig.IN 1308.
Fig.IN 1309
PN10 angle globe valve, cast iron GG-25 body and bolted bonnet, SDNR type disc with spring, AISI 304 seats, flanged PN10, Fig.IN 1309.

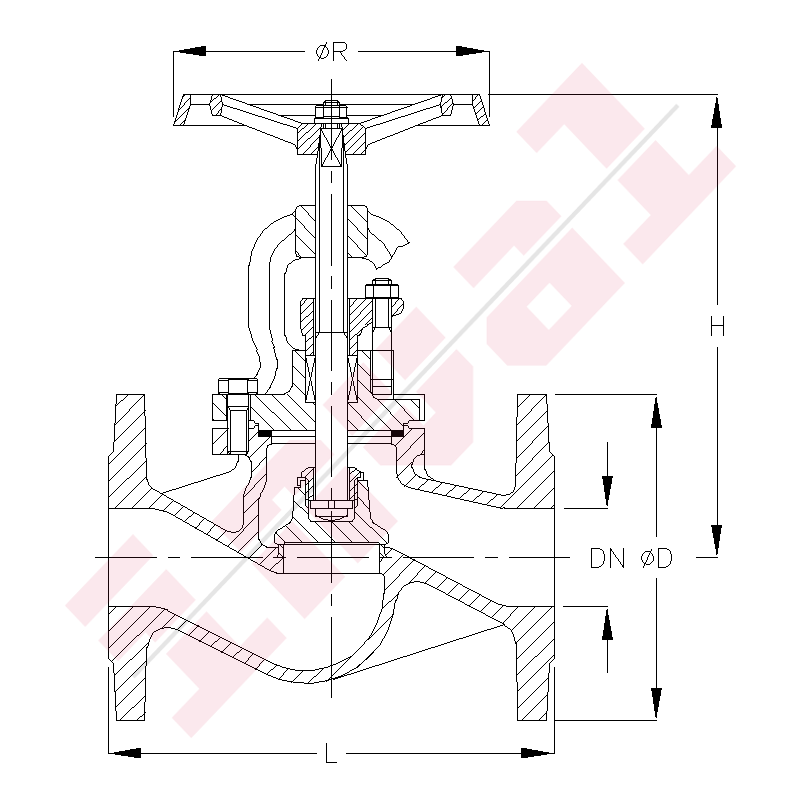

Fig.IN 2302
PN10 straight globe valve, cast iron GG-25 body and bolted bonnet, SL type disc, bronze Rg5 seats, flanged PN10,
Fig.IN 2302.
Fig.IN 2302RK
PN10 straight globe valve, cast iron GG-25 body and bolted bonnet, SL type regulating disc, bronze Rg5 seats, flanged PN10, Fig.IN 2302RK.
Fig.IN 2303
PN10 angle globe valve, cast iron GG-25 body and bolted bonnet, SL type disc, bronze Rg5 seats, flanged PN10,
Fig.IN 2303.
Fig.IN 2303RK
PN10 angle globe valve, cast iron GG-25 body and bolted bonnet, SL type regulating disc, bronze Rg5 seats, flanged PN10, Fig.IN 2303RK.
Fig.IN 2312
PN10 straight globe valve, cast iron GG-25 body and bolted bonnet, SDNR type disc with spring, bronze Rg5 seats, flanged PN10, Fig.IN 2312.

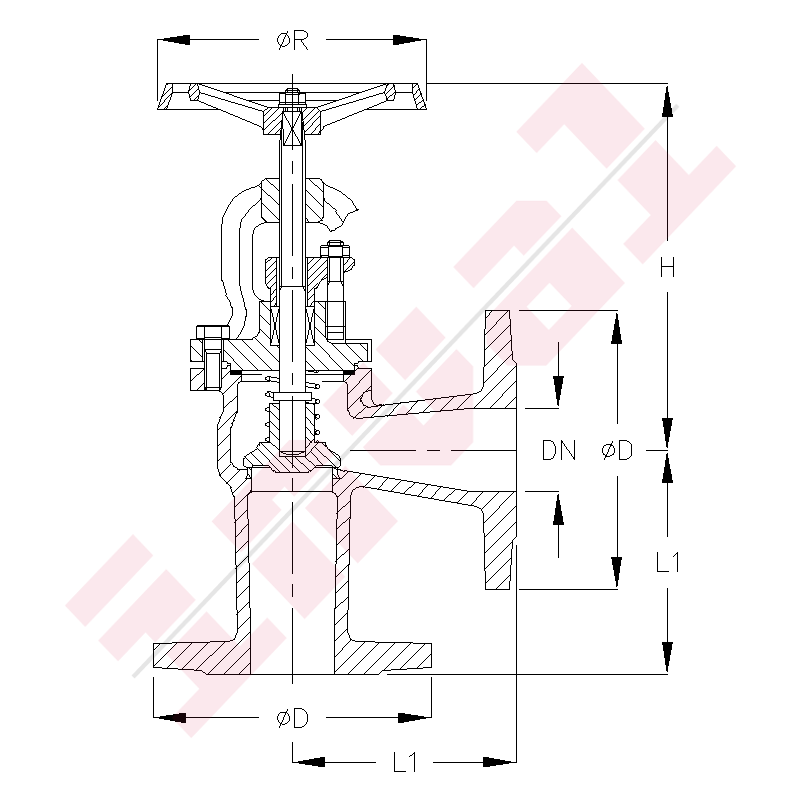

Fig.IN 2313
PN10 angle globe valve, cast iron GG-25 body and bolted bonnet, SDNR type disc with spring, bronze Rg5 seats, flanged PN10, Fig.IN 2313.
