Peiltoestel

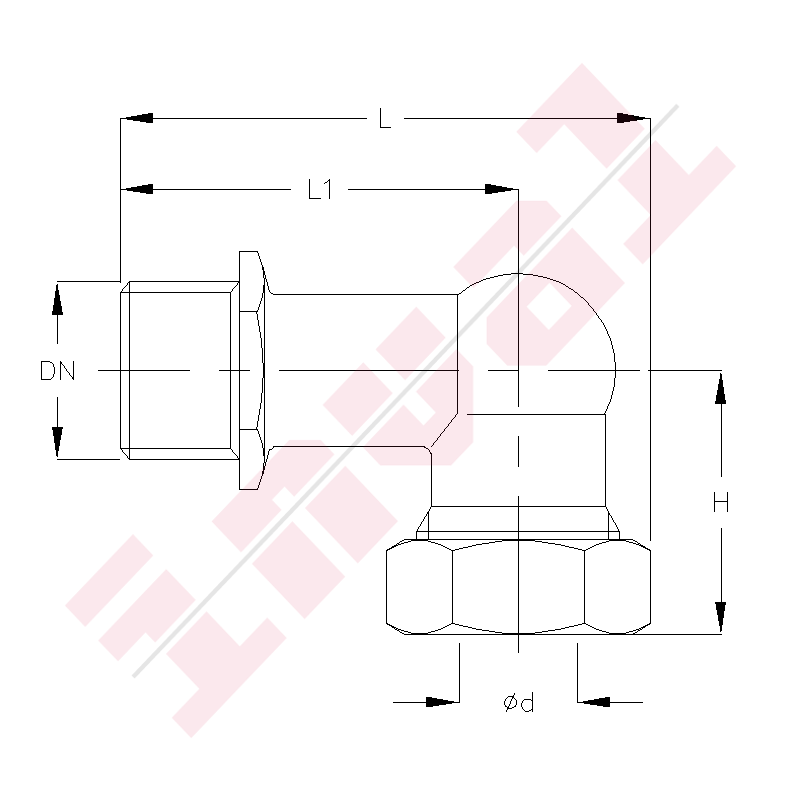

Fig.IN 1000
PN25 messing peilglasknie, t.b.v. glas 12 mm, 1/2″ BSP buitendraad,Fig.IN 1000.

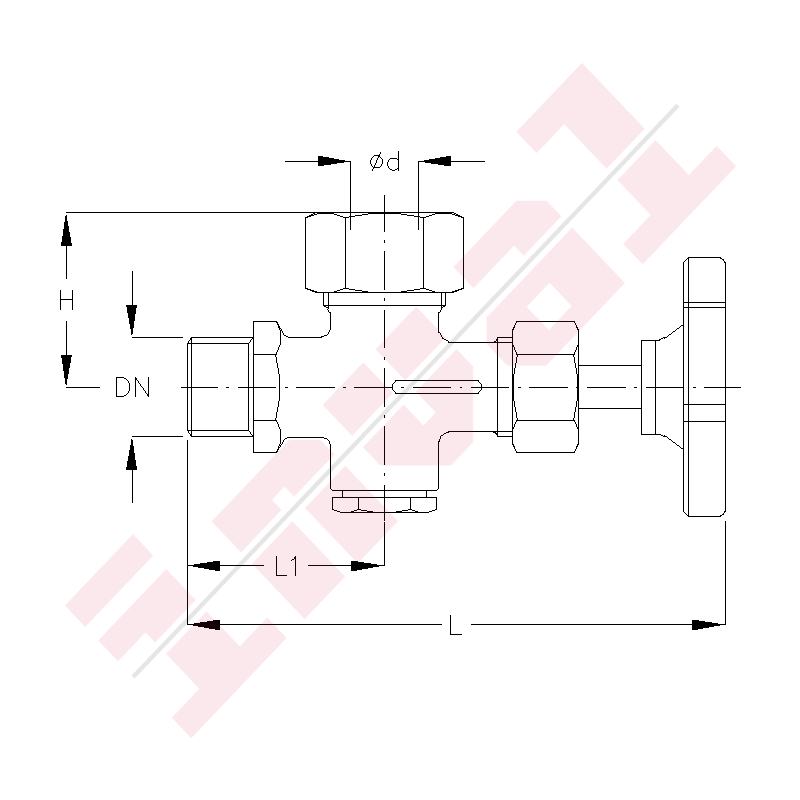

Fig.IN 1001
PN25 messing peilglasafsluiter, t.b.v. glas 12 mm, afsluiter met handwiel en aftap plug, 1/2″ BSP buitendraad,
Fig.IN 1001.
Fig.IN 1006
Plexiglas buis, kleurloos, buitendiameter 12 mm, lengte 4 meter, maximale werkdruk 5 bar, maximale temperatuur 60°C, Fig.IN 1006.

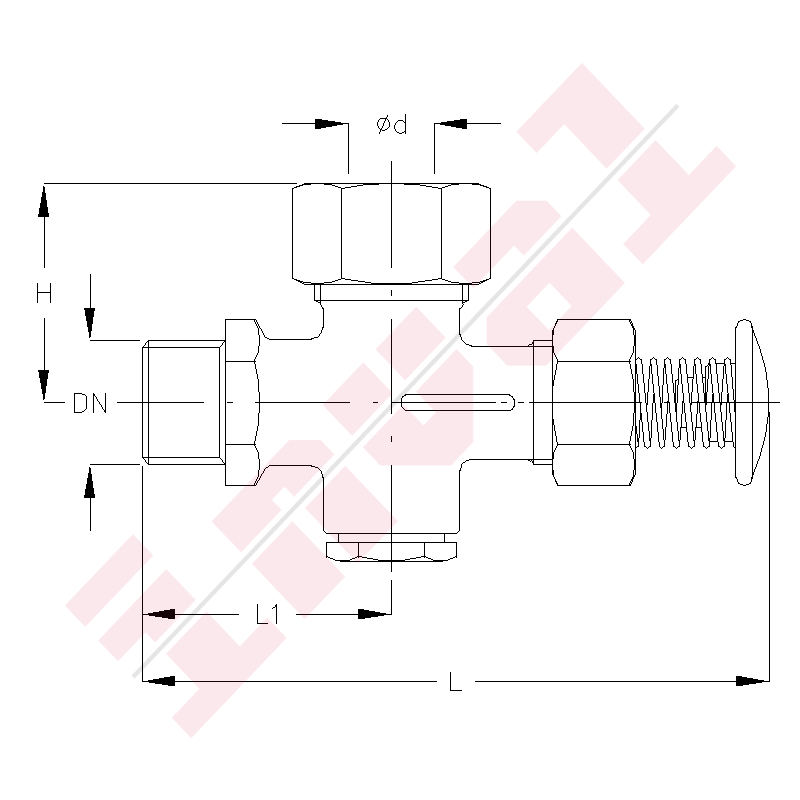

Fig.IN 1010
PN25 messing zelfsluitende peilglasafsluiter met drukknop en aftap plug, t.b.v. glas 12 mm, O-ring spindel afdichting, 1/2″ BSP buitendraad, Fig.IN 1010.
Fig.IN 1016
PN25 messing tussenstuk, t.b.v. glas 12 mm, 1/2″ BSP buitendraad, Fig.IN 1016.
