Gearboxes

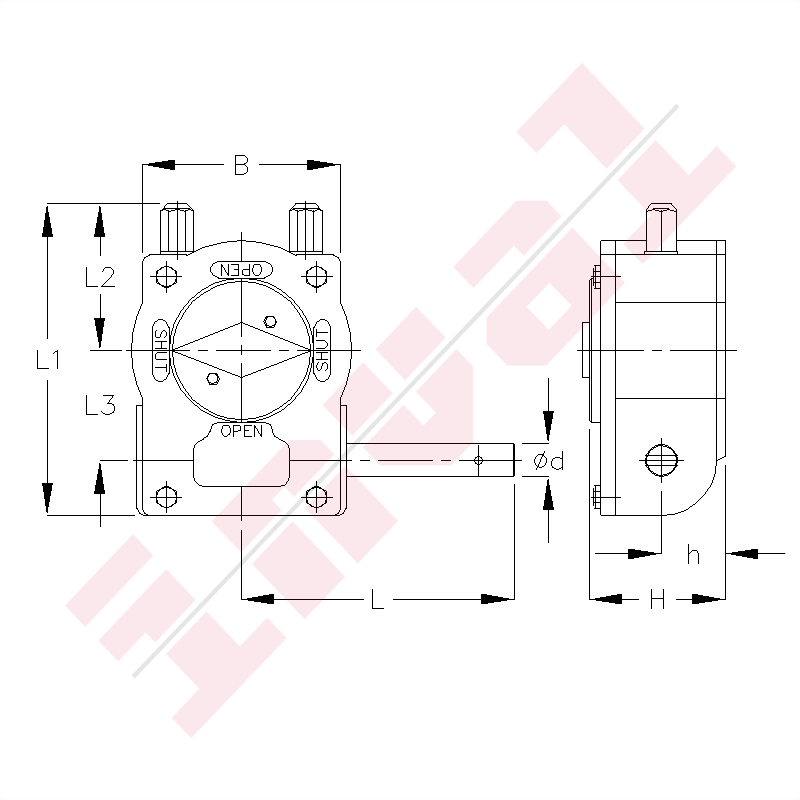

Fig.IN 232-150N
Cast iron gearbox, AISI 303 shaft, steel handwheel, position indicator, IP67, ISO5211 F05/F07, max. torque 150 Nm, square … mm, Fig.IN 232-150N.

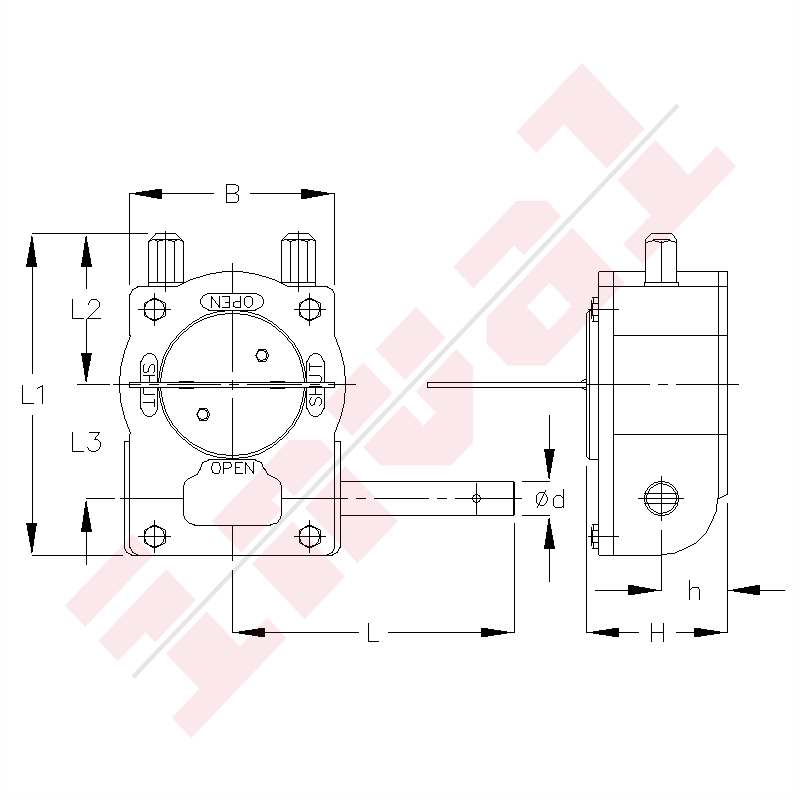

Fig.IN 232-150W
Cast iron gearbox, AISI 303 shaft, steel handwheel, vane indicator 100×100 mm, IP68, ISO5211 F05/F07, max. torque 150 Nm, square … mm, Fig.IN 232-150W.
Fig.IN 232-210N
Cast iron gearbox, AISI 303 shaft, steel handwheel, position indicator, IP67, ISO5211 F05/F07/F10, max. torque 330 Nm, square … mm, Fig.IN 232-210N.

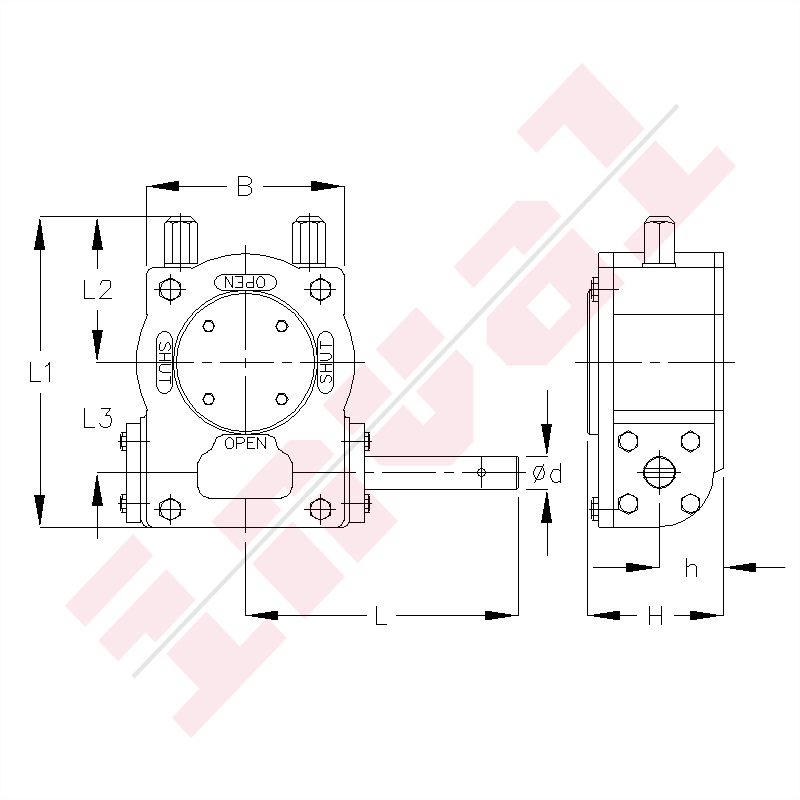

Fig.IN 232-210S
Watertight cast iron gearbox, AISI 303 shaft with O-ring sealing, IP68, coated 200 um, ISO5211 F05/F07/F10, max. torque 330 Nm, square … mm, Fig.IN 232-210S.
Fig.IN 232-210W
Cast iron gearbox, AISI 303 shaft, steel handwheel, vane indicator 100×100 mm, IP68, ISO5211 F05/F07/F10, max. torque 330 Nm, square … mm, Fig.IN 232-210W.
Fig.IN 232-550N
Cast iron gearbox, AISI 303 shaft, steel handwheel, position indicator, IP67, ISO5211 F10/F12, max. torque 1000 Nm, square … mm, Fig.IN 232-550N.
Fig.IN 232-550S
Watertight cast iron gearbox, AISI 303 shaft with O-ring sealing, IP68, coated 200 um, ISO5211 F10/F12, max. torque 1000 Nm, square … mm, Fig.IN 232-550S.
Fig.IN 232-550W
Cast iron gearbox, AISI 303 shaft, steel handwheel, vane indicator 100×100 mm, IP68, ISO5211 F10/F12, max. torque 1000 Nm, square … mm, Fig.IN 232-550W.
Fig.IN 232-880N
Cast iron gearbox, AISI 303 shaft, steel handwheel, position indicator, IP67, ISO5211 F12/F14/F16, max. torque 2000 Nm, square … mm, Fig.IN 232-880N.
Fig.IN 232-880S
Watertight cast iron gearbox, AISI 303 shaft with O-ring sealing, IP68, coated 200 um, ISO5211 F12/F14/F16, max. torque 2000 Nm, square … mm, Fig.IN 232-880S.
Fig.IN 232-880W
Cast iron gearbox, AISI 303 shaft, steel handwheel, vane indicator 100×100 mm, IP68, ISO5211 F12/F14/F16, max. torque 2000 Nm, square … mm, Fig.IN 232-880W.
Fig.IN 232-IGL/D100
Declutchable cast iron gearbox, AISI 303 shaft, steel handwheel, IP65, ISO5211 F05/07, max. torque 125 Nm, Fig.IN 232-ILG/D100.
Fig.IN 232-IGL/D200
Declutchable cast iron gearbox, AISI 303 shaft, steel handwheel, IP65, ISO5211 F05/07, max. torque 250 Nm, Fig.IN 232-ILG/D200.
Fig.IN 232-IGL/D600
Declutchable cast iron gearbox, AISI 303 shaft, steel handwheel, IP65, ISO5211 F07/10/12, max. torque 750 Nm, Fig.IN 232-ILG/D600.
Fig.IN 232-IGL/D900
Declutchable cast iron gearbox, AISI 303 shaft, steel handwheel, IP65, ISO5211 F10/14, max. torque 1450 Nm, Fig.IN 232-ILG/D900.
Fig.IN 232-IGL/D1500
Declutchable cast iron gearbox, AISI 303 shaft, steel handwheel, IP65, ISO5211 F12/14/16, max. torque 2485 Nm, Fig.IN 232-ILG/D1500.
