Wafer Type
Fig.IN 814EBH
PN10 wafer type butterfly valve, GGG-40 body, bronze disc, vulcanized EPDM liner, lever operated, mounting between flanges PN10, Fig.IN 814EBH.
Fig.IN 814EBW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc, vulcanized EPDM liner, cast iron gearbox with steel handwheel, mounting between flanges PN10,
Fig.IN 814EBW.
Fig.IN 814ERW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc, vulcanized EPDM liner, cast iron gearbox with steel handwheel, mounting between flanges PN10,
Fig.IN 814ERW.
Fig.IN 814ERH
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc, vulcanized EPDM liner, lever operated, mounting between flanges PN10, Fig.IN 814ERH.
Fig.IN 814NBH
PN10 wafer type butterfly valve, GGG-40 body, bronze disc, vulcanized NBR liner, lever operated, mounting between flanges PN10, Fig.IN 814NBH.
Fig.IN 814NBV
PN10 wafer type butterfly valve, GGG-40 body, bronze disc, vulcanized NBR liner, bare shaft, mounting between flanges PN10, Fig.IN 814NBV.
Fig.IN 814NBW
PN10 wafer type butterfly valve, GGG-40 body, bronze disc, vulcanized NBR liner, cast iron gearbox with steel handwheel, mounting between flanges PN10,
Fig.IN 814NBW.
Fig.IN 814NBWW
PN10 wafer type butterfly valve, GGG-40 body, bronze disc, vulcanized NBR liner, watertight cast iron gearbox, mounting between flanges PN10, Fig.IN 814NBWW.
Fig.IN 814NH
PN10 wafer type butterfly valve, GG-25 body, GGG-50 zinc-plated disc, renewable NBR liner, lever operated, mounting between flanges PN10, Fig.IN 814NH.
Fig.IN 814NRH
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc, vulcanized NBR liner, lever operated, mounting between flanges PN10, Fig.IN 814NRH.
Fig.IN 814NRV
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc, vulcanized NBR liner, bare shaft, mounting between flanges PN10, Fig.IN 814NRV.
Fig.IN 814NRW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc, vulcanized NBR liner, cast iron gearbox with steel handwheel, mounting between flanges PN10,
Fig.IN 814NRW.
Fig.IN 814NRWW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc, vulcanized NBR liner, watertight cast iron gearbox, mounting between flanges PN10, Fig.IN 814NRWW.
Fig.IN 814NW
PN10 wafer type butterfly valve, GG-25 body, GGG-50 zinc-plated disc, renewable NBR liner, cast iron gearbox with steel handwheel,
mounting between flanges PN10, Fig.IN 814NW.
Fig.IN 825CRV
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc and shaft, CB renewable liner, bare shaft, mounting between flanges PN10, Fig.IN 825CRV.

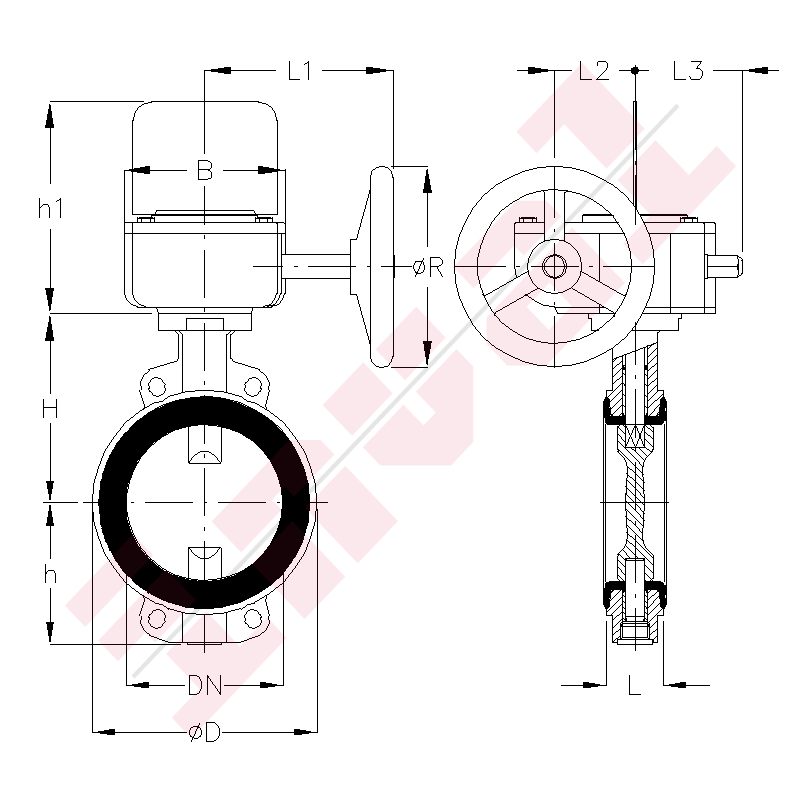

Fig.IN 825CRW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc and shaft, CB renewable liner, cast iron gearbox with vane indicator, mounting between flanges PN10, Fig.IN 825CRW.
Fig.IN 825TRV
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc and shaft, PTFE/Silicone renewable liner, bare shaft, mounting between flanges PN10, Fig.IN 825TRV.
Fig.IN 825TRW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc and shaft, PTFE/Silicone renewable liner, cast iron gearbox with vane indicator, mounting between flanges PN10,
Fig.IN 825TRW.
Fig.IN 825TTV
PN10 wafer type butterfly valve, GGG-40 body, AISI 316/PTFE disc and shaft, PTFE/Silicone renewable liner, bare shaft, mounting between flanges PN10,
Fig.IN 825TTV.
Fig.IN 825TTW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316/PTFE disc and shaft, PTFE/Silicone renewable liner, cast iron gearbox with vane indicator, mounting between flanges PN10,
Fig.IN 825TTW.
Fig.IN 825VGRV
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc and shaft, Viton vulcanized liner, bare shaft, mounting between flanges PN10, Fig.IN 825VGRV.
Fig.IN 825VGRW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc and shaft, Viton vulcanized liner, cast iron gearbox with vane indicator, mounting between flanges PN10, Fig.IN 825VGRW.
Fig.IN 825VRV
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc and shaft, Viton renewable liner, bare shaft, mounting between flanges PN10, Fig.IN 825VRV.
Fig.IN 825VRW
PN10 wafer type butterfly valve, GGG-40 body, AISI 316 disc and shaft, Viton renewable liner, cast iron gearbox with vane indicator, mounting between flanges PN10, Fig.IN 825VRW.
