Pressure gauge valves
Fig.IN 960M
PN6 brass pressure gauge valve, DIN 16261-B, without packing gland, BSP female / male threaded ends,
Fig.IN 960M.
Fig.IN 960R
PN6 AISI 316Ti pressure gauge valve, DIN 16261-B, without packing gland, BSP female / male threaded ends,
Fig.IN 960R.
Fig.IN 961M
PN6 brass pressure gauge valve, DIN 16261-A, without packing gland, BSP female threaded ends, Fig.IN 961M.
Fig.IN 961R
PN6 AISI 316Ti pressure gauge valve, DIN 16261-A, without packing gland, BSP female threaded ends, Fig.IN 961R.

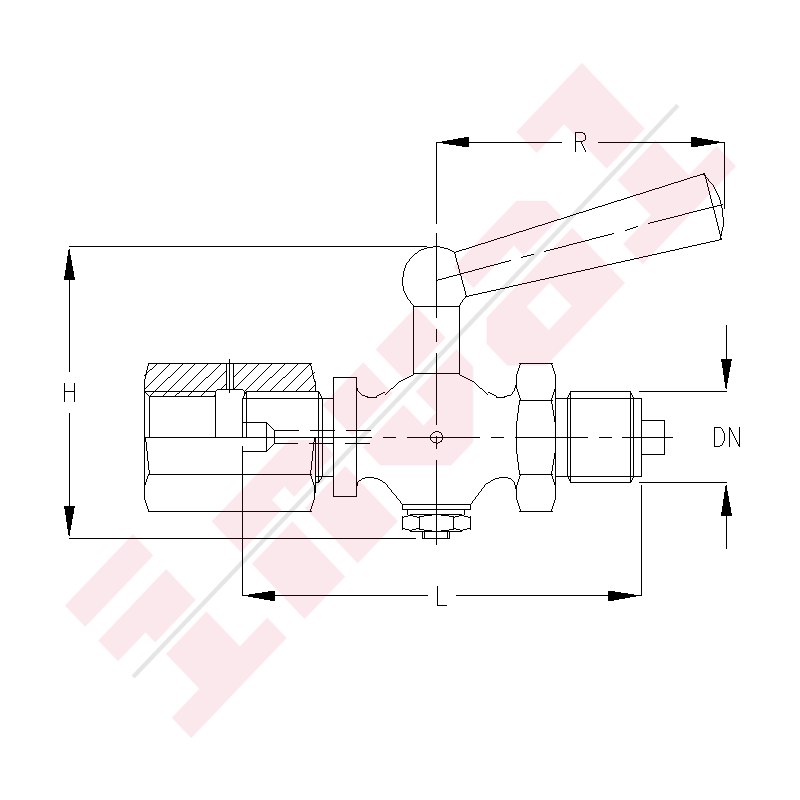

Fig.IN 964M
PN6 brass pressure gauge valve, DIN 16262, without packing gland, union nut / BSP male threaded end, Fig.IN 964M.
Fig.IN 964R
PN6 AISI 316Ti pressure gauge valve, DIN 16262, without packing gland, union nut / BSP male threaded end,
Fig.IN 964R.
Fig.IN 979M
PN250 brass pressure gauge valve, DIN 16270, handwheel operated, venting screw, union nut / BSP male threaded end, Fig.IN 979M.

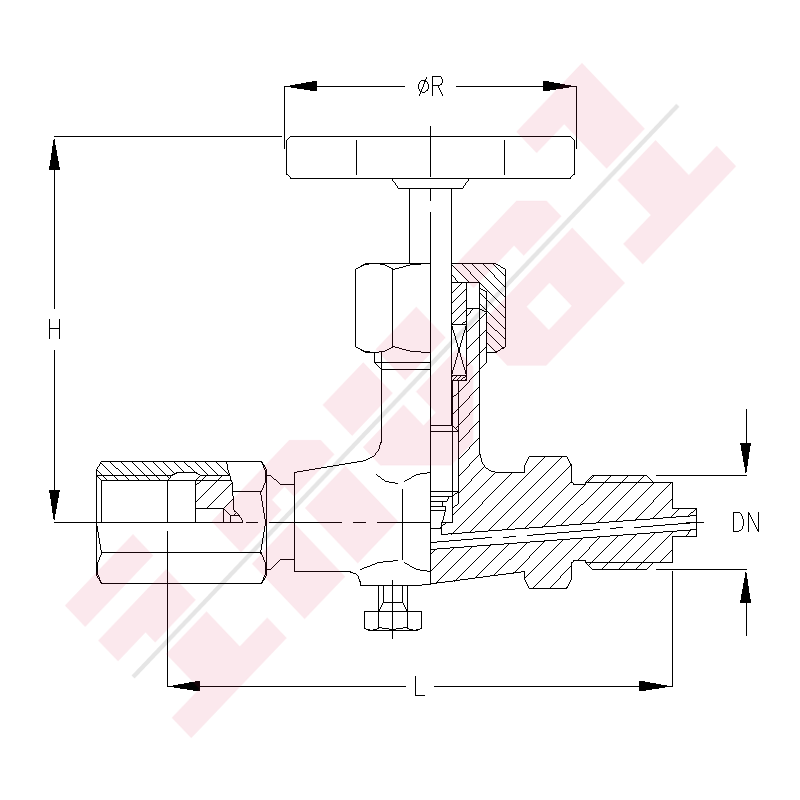

Fig.IN 979R
PN400 AISI 316Ti pressure gauge valve, DIN 16270, handwheel operated, venting screw, union nut / BSP male threaded end, Fig.IN 979R.
Fig.IN 979S
PN400 C22.8 pressure gauge valve, DIN 16270, handwheel operated, venting screw, union nut / BSP male threaded end, Fig.IN 979S.
Fig.IN 982M
PN250 brass pressure gauge valve, DIN 16270, handwheel operated, venting screw, union nut / union nut, Fig.IN 982M.
Fig.IN 982R
PN400 AISI 316Ti pressure gauge valve, DIN 16270, handwheel operated, venting screw, union nut / union nut, Fig.IN 982R.
Fig.IN 982S
PN400 C22.8 pressure gauge valve, DIN 16270, handwheel operated, venting screw, union nut / union nut, Fig.IN 982S.
