Fig.IN 1101A

Data Sheet

Steel fork link, both sides with welding end, to suit transmission pipe (DIN 2448), Fig.IN 1101A.

Fig.IN 1101B

Data Sheet

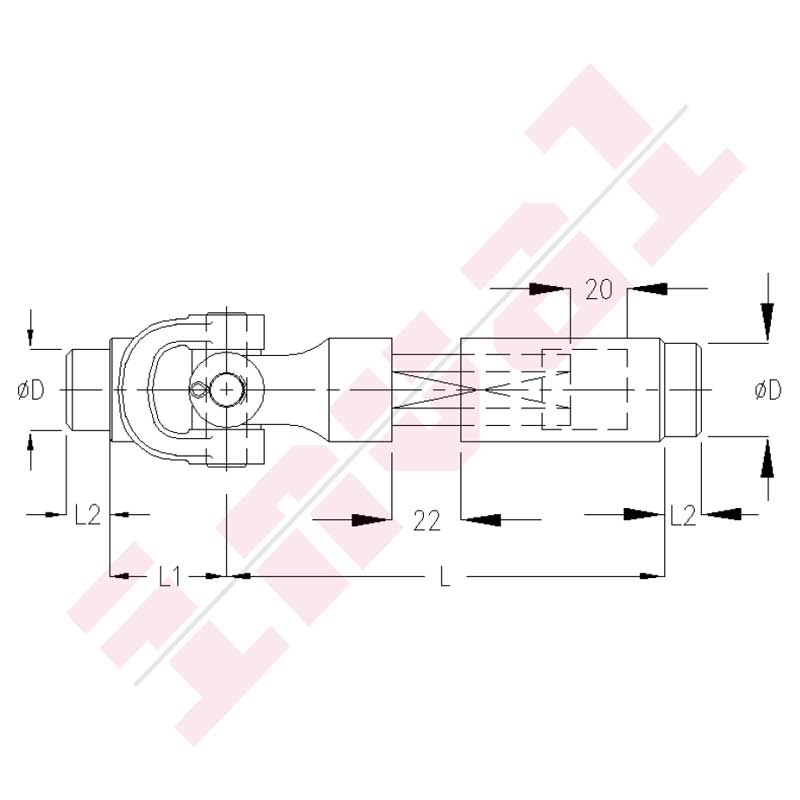

Steel fork link, short lengths adjustment, both sides with welding end to suit transmission pipe (DIN 2448),
Fig.IN 1101B.

Fig.IN 1201A

Data Sheet

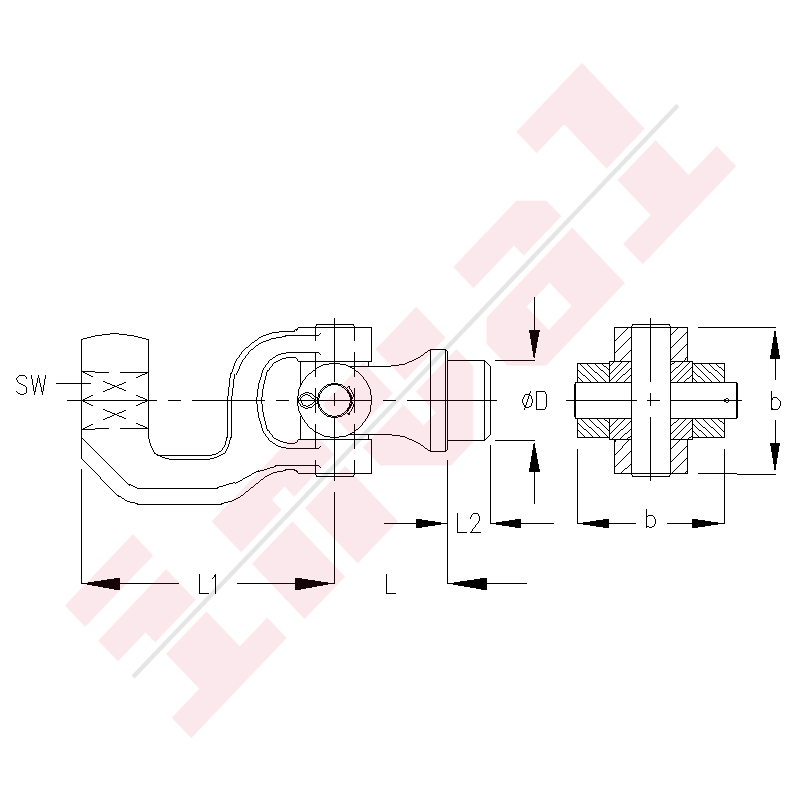

Steel slip-on joint according to DIN 87344, one side square taper facet … mm, one side with welding end to suit transmission pipe (DIN 2448), Fig.IN 1201A.

Fig.IN 1201B

Data Sheet

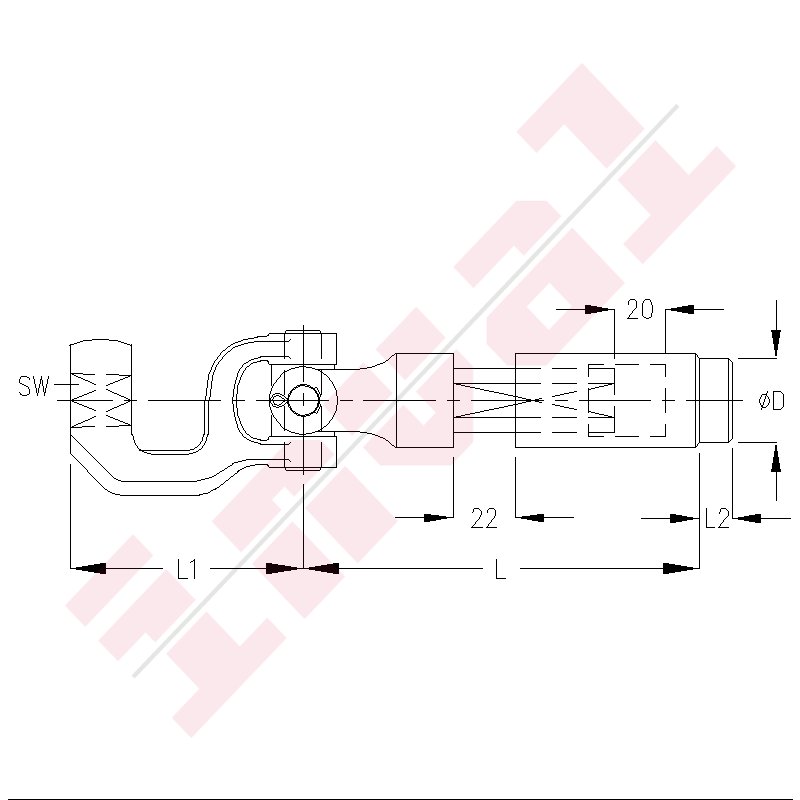

Steel slip-on joint according to DIN 87344, short lengths adjustment, one side square taper facet … mm, one side with welding end to suit transmission pipe (DIN 2448),
Fig.IN 1201B.

Fig.IN 1202D

Data Sheet

Steel slip-on joint according to DIN 87344, one side square parallel facet … mm, one side with welding end to suit transmission pipe (DIN 2448), Fig.IN 1202D.

Fig.IN 1202E

Data Sheet

Steel slip-on joint according to DIN 87344, short lengths adjustment, one side square parallel facet … mm, one side with welding end to suit transmission pipe (DIN 2448),
Fig.IN 1201E.

Fig.IN 1301H

Data Sheet

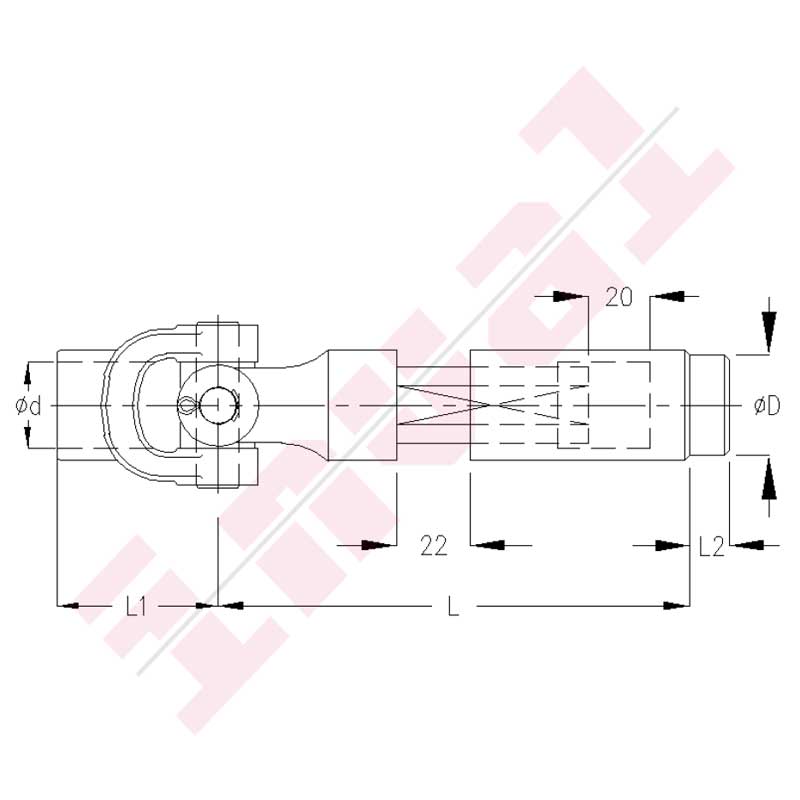

Steel shaft fork joint according to 1098/344, short lengths adjustment, one side bore … mm, one side with welding end to suit transmission pipe (DIN 2448), Fig.IN 1301H.

Fig.IN 1301E

Data Sheet

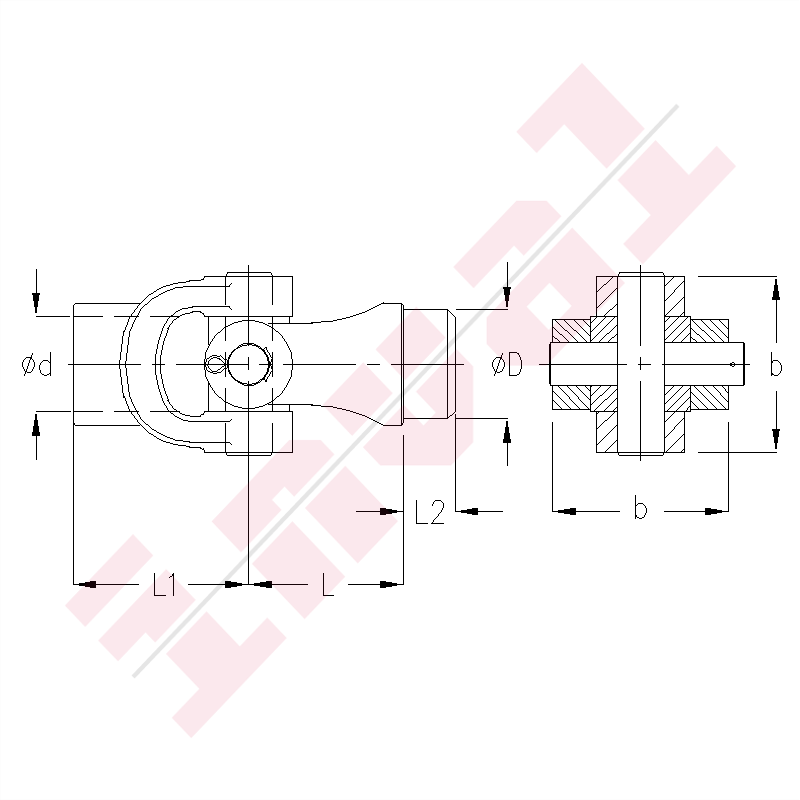

Steel shaft fork joint according to 1098/344, one side bore … mm, one side with welding end to suit transmission pipe (DIN 2448), Fig.IN 1301E.

Other executions on request.
