Deckstands
Fig.IN 4102
Watertight deckstand, height 250 mm, stainless steel AISI 303 shaft, brass position indicator, bronze Rg7 bearings, NBR O-ring sealing,
handwheel operated round … mm, max. 25 revolutions, flanged PN10, Fig.IN 4102.
Fig.IN 4102G
Watertight deckstand, height 285 mm, stainless steel AISI 303 shaft, brass position indicator, bronze Rg7 bearings, NBR O-ring sealing,
handwheel operated round … mm, max. 60 revolutions, flanged PN10, Fig.IN 4102G.

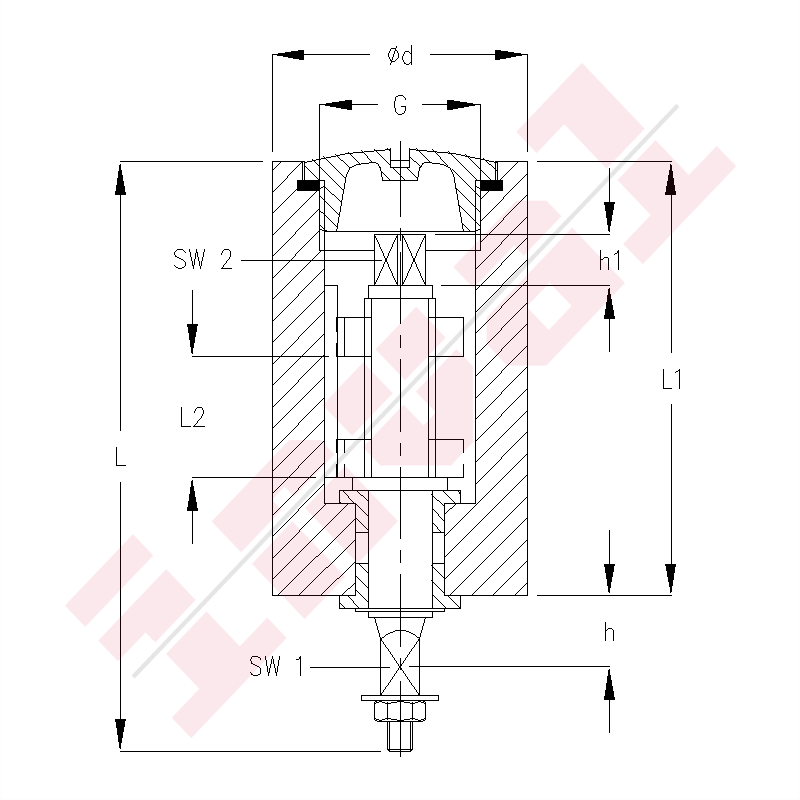

Fig.IN 7101
Steel deck operating device according to DIN 87374, welding-in type, steel shaft, bronze plug, position indicator, brass bearings, type … Fig.IN 7101.
